Acoustic Baffles

Acoustic Baffles EasySnap Casette TwinFelt Double-Layer PET felt laminated for coffered ceilings

495,00 € / m²356,40 €  / 2pc.  / 2pc.

  • Custom Production
  • Made In Europe
  • Certified materials
Collection image

Acoustic Baffles EasySnap CasetteTwinFelt Double-Layer PET felt laminated for coffered ceilings

EasySnap Casette TwinFelt Double-Layer PET Felt is a practical and aesthetically pleasing acoustic baffle system designed for standard coffered suspended ceilings. Thanks to its compact 59.5×59.5 cm module size, it integrates seamlessly with popular coffered ceiling systems, providing effective acoustic improvement without the need to alter the existing structure. EasySnap Casette TwinFelt Double-Layer PET Felt is the ideal solution for offices, schools, corridors, healthcare facilities and commercial spaces fitted with coffered ceilings, where a quick and effective improvement in acoustics is required. Choose EasySnap Casette TwinFelt Double-Layer PET Felt if you want to easily improve the acoustics of your existing suspended ceiling.

Acoustic Baffle TwinFelt
TwinFelt is a unique technology that allows felt to be coated with a second material, thereby enhancing its possi bilities for interior design.

Why EasySnap™?
DeFelt acoustic baffle is thoughtfully designed with a focus on aesthetics. Made from recycled PET felt is recyclable and VOC free. Meets sustainability and quality standards, improve the room’s acoustics without altering the furniture or flooring.

Product Specification:

Base material

100% PET (60% from recycled plastic bottles)
Single module size

595 x 595 x 145 mm
Coverage per pack

0,72 m2
Fire-rating

B-s1,d0
Acoustic class

When installed with a 60–200 mm suspension gap, EasySnap™ can achieve an estimated NRC rating of up to 0.90–0.95,
Set contents

Acoustic Lamellen and mounting rails, Lamella end caps

Installation process

  1. Prepare the ceiling mounting point

    Mark the installation points on the ceiling and drill holes according to the supplied anchors. Insert the wall plugs and secure the ceiling attachments using the expansion bolts.

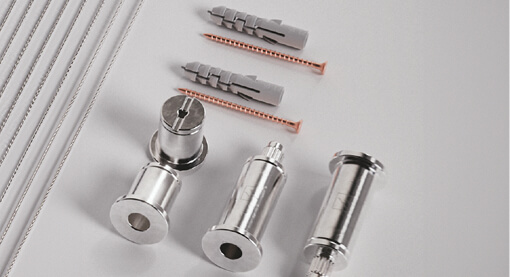

    Ceiling mounting hardware: wall plugs, screws and ceiling attachments

  2. Attach the suspension cable

    Insert the wire rope into the cable gripper or holder and connect it to the mounted ceiling attachment. Make sure the cable is securely locked in place.

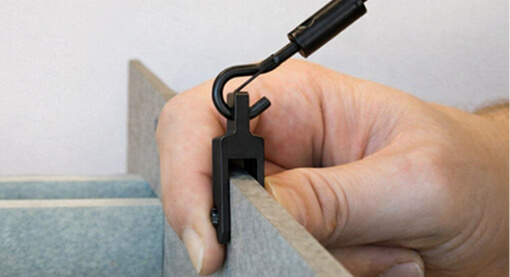

    Attaching the suspension cable to the panel

  3. Mount the panel and adjust height

    Fix the cable holder to the acoustic panel or element to be suspended. Adjust the height by sliding the cable through the gripper until the desired position is reached.

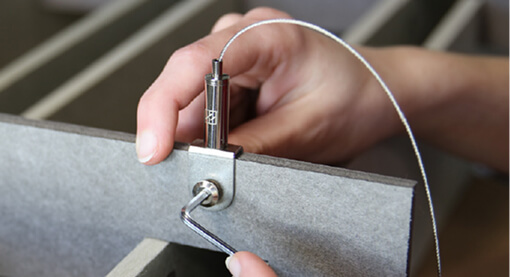

    Mounting the panel and adjusting height with an Allen key

Frequently Asked Questions

What is EasySnap™?

EasySnap™ is a PET felt acoustic baffle system designed for suspended ceiling applications. It improves sound absorption while adding a clean, modern architectural ceiling feature

What acoustic performance does EasySnap™ provide?

Acoustic performance depends on the installation configuration and suspension gap.For 9 mm PET Felt (1900 g/m²): direct mounting (no air gap) – high absorption in mid and high frequencies, limited performance in low frequencies. With a 60–200 mm air gap – significantly improved absorption in low and mid frequencies, with excellent performance across the speech frequency range (500–2000 Hz). When installed with a 60–200 mm suspension gap, EasySnap™ can achieve Acoustic Class A performance (αw ≥ 0.90), depending on configuration and test setup

What sizes are available?

Standard panel sizes include: 120×120 cm, 60×120 cm, 60×60 cm. Custom dimensions are available upon request

What thickness is available?

Standard thickness: 9 mm PET felt.
Other configurations may be available for project-specific requirements

Are EasySnap™ baffles fire rated?

Yes. Panels are available in fire-performance version: Class B-s2, d0 (FR version)
Tested according to EN 13501-1

How are EasySnap™ baffles installed?

EasySnap™ is designed for fast and precise suspension using the FeltLock™ suspension system, allowing tool-less height adjustment and clean alignment

How many colors are available?

EasySnap™ panels are available in 31 PET felt colors, as well as selected decorative printed finishes and custom colors are available upon request

Can EasySnap™ be customized?

Yes. We offer custom layouts, spacing, ceiling configurations, colors and project-based design solutions tailored to architects and contractors

Where can EasySnap™ be used?

EasySnap™ baffles are Ideal for offices and open-plan spaces, conference rooms, educational facilities, restaurants and hospitality interiors, retail and commercial spaces and public buildings

acoustical

decorative

easy to install

fire-rated

recyclable

ventilated

VOC free
